24 Volt LiFePO4 Battery Pack, 20Ah (512 Wh) - Used/Tested
- In stock, ready to ship
- Inventory on the way

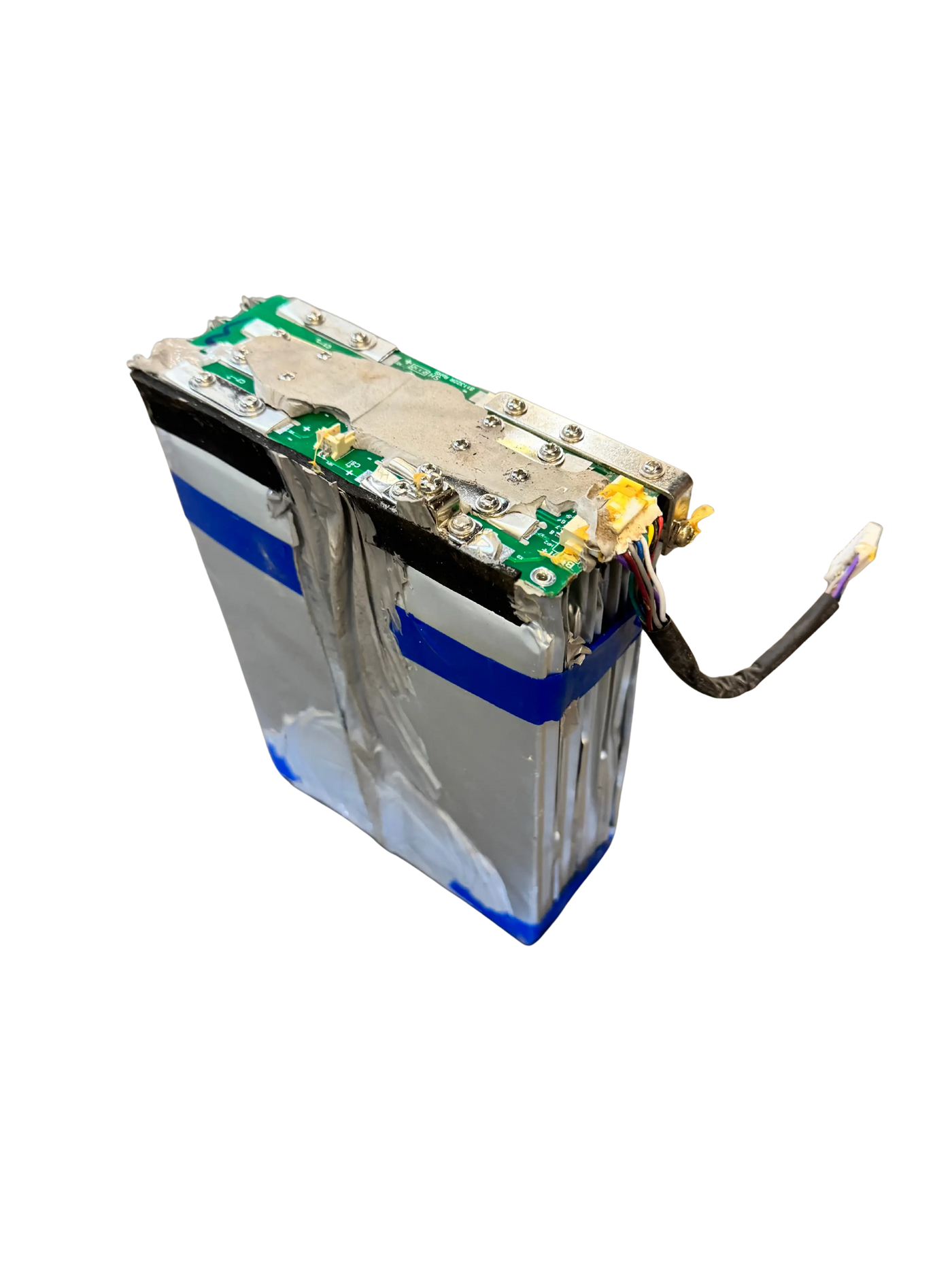

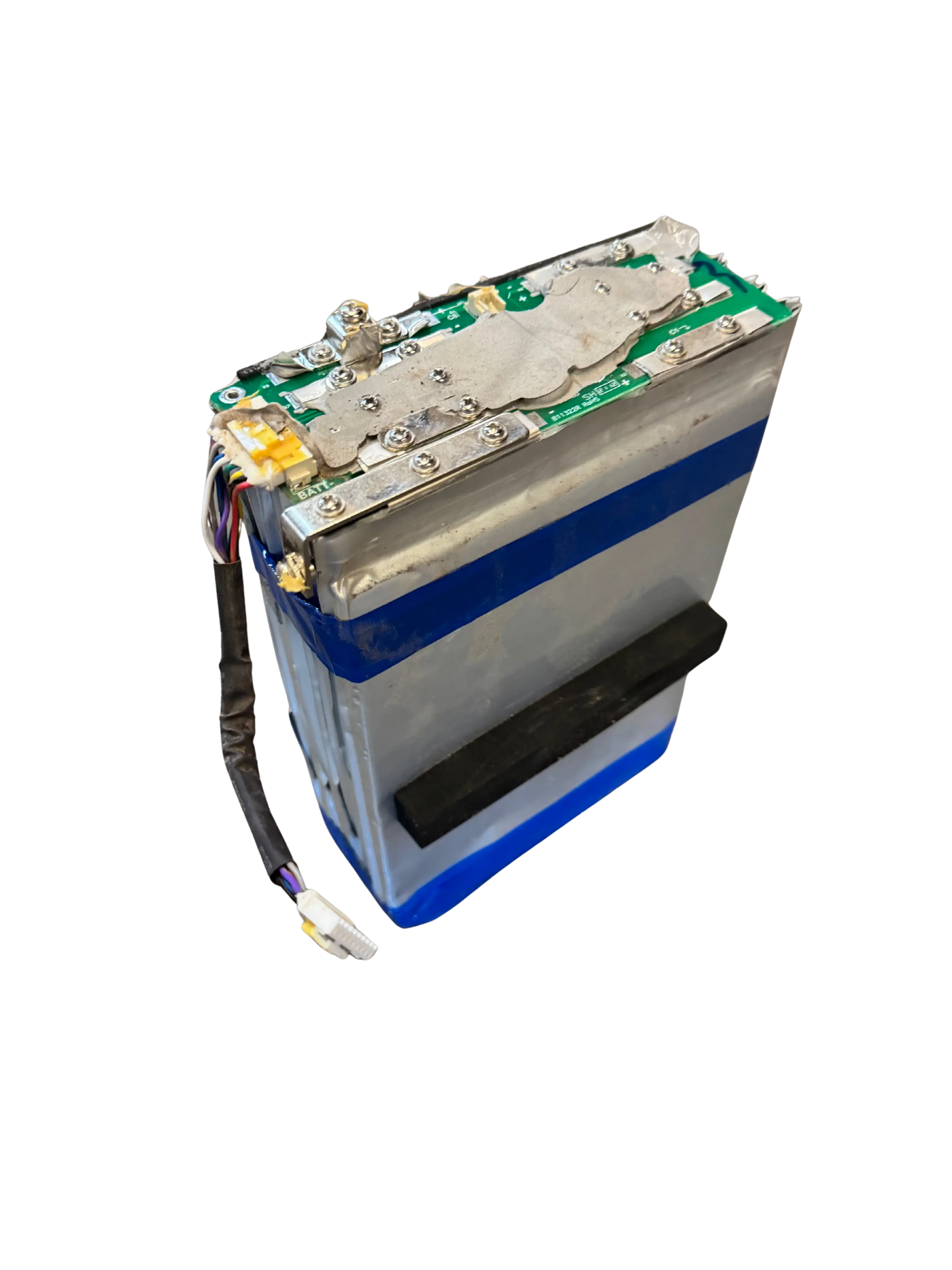

This 24 volt LiFePO4 battery pack came out of an electric pallet jack. It has pouch cells that are screwed into the pc board, meaning it can be easily disassembled to make a custom pack. Note that there are two models of this pack with slight design differences. One has a black plastic case but the capacity and general design are the same for both.
We have removed the battery module from the exterior casing to check individual voltages, all of which are within a few millivolts of one another. This does not have a BMS but does come with a balance lead (shown) to easily connect to your BMS of choice. Both positive and negative have screw terminals to easily connect conductors. There may be rubberized epoxy as shown, which will need to be CAREFULLY removed to access the cell terminals.
This is being sold "as is" and for a low price with this in mind.
24 Volt LiFePO4 Battery Specifications
- Chemistry: lithium iron phosphate (LiFePO4)
- Voltage: 20.0v - 28.8v
- Capacity: 20Ah
- Weight: 18.5 lb (approximately)
- Measurements: 9 x 7.5 x 3" (approximate).
CAUTION
Lithium batteries can be incredibly dangerous! DO NOT handle or use lithium batteries unless you have a deep understanding of how they work and are willing to accept the risk. By purchasing this product, you agree that you have read and will comply with our complete safety guidelines.
