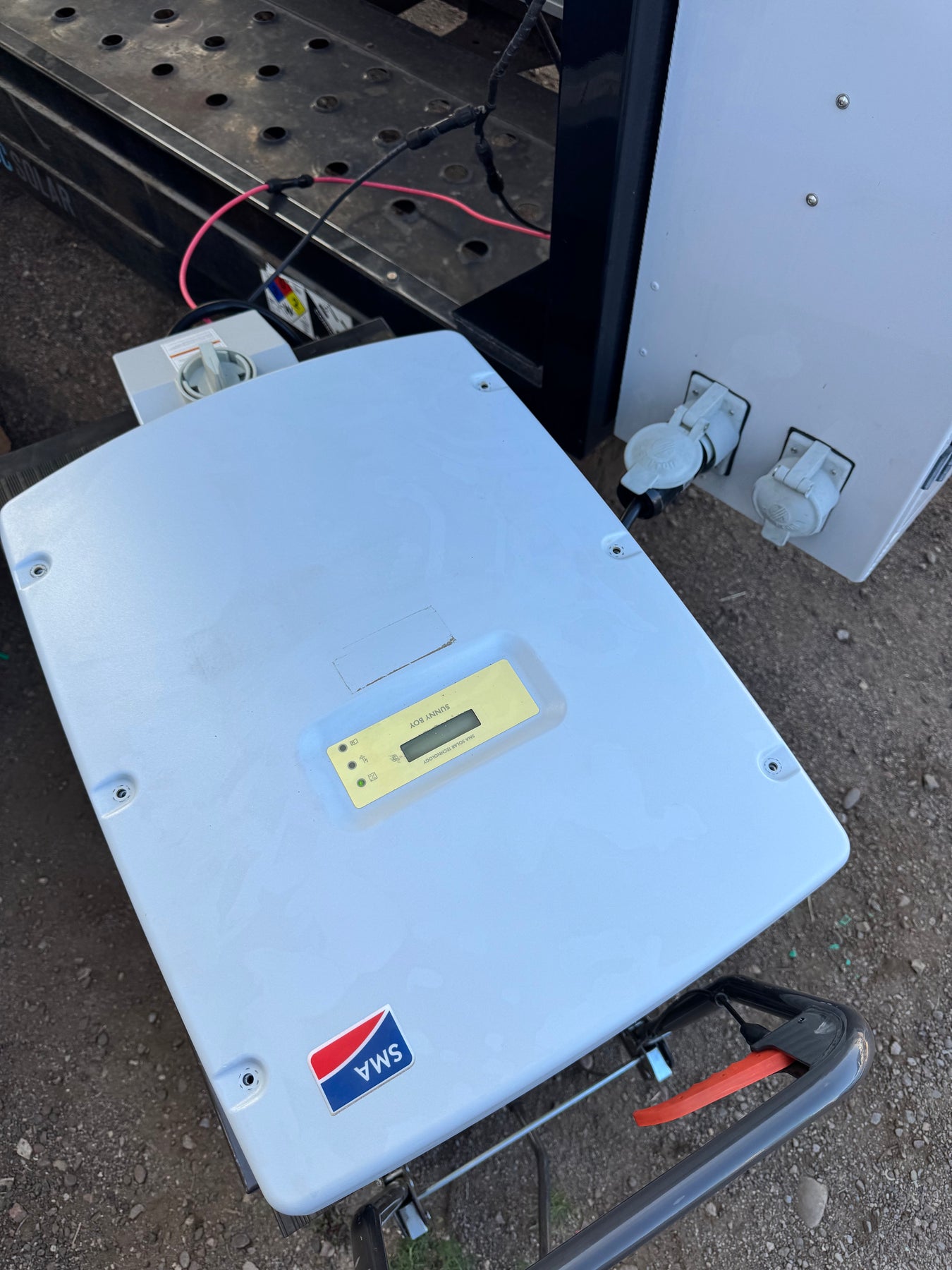

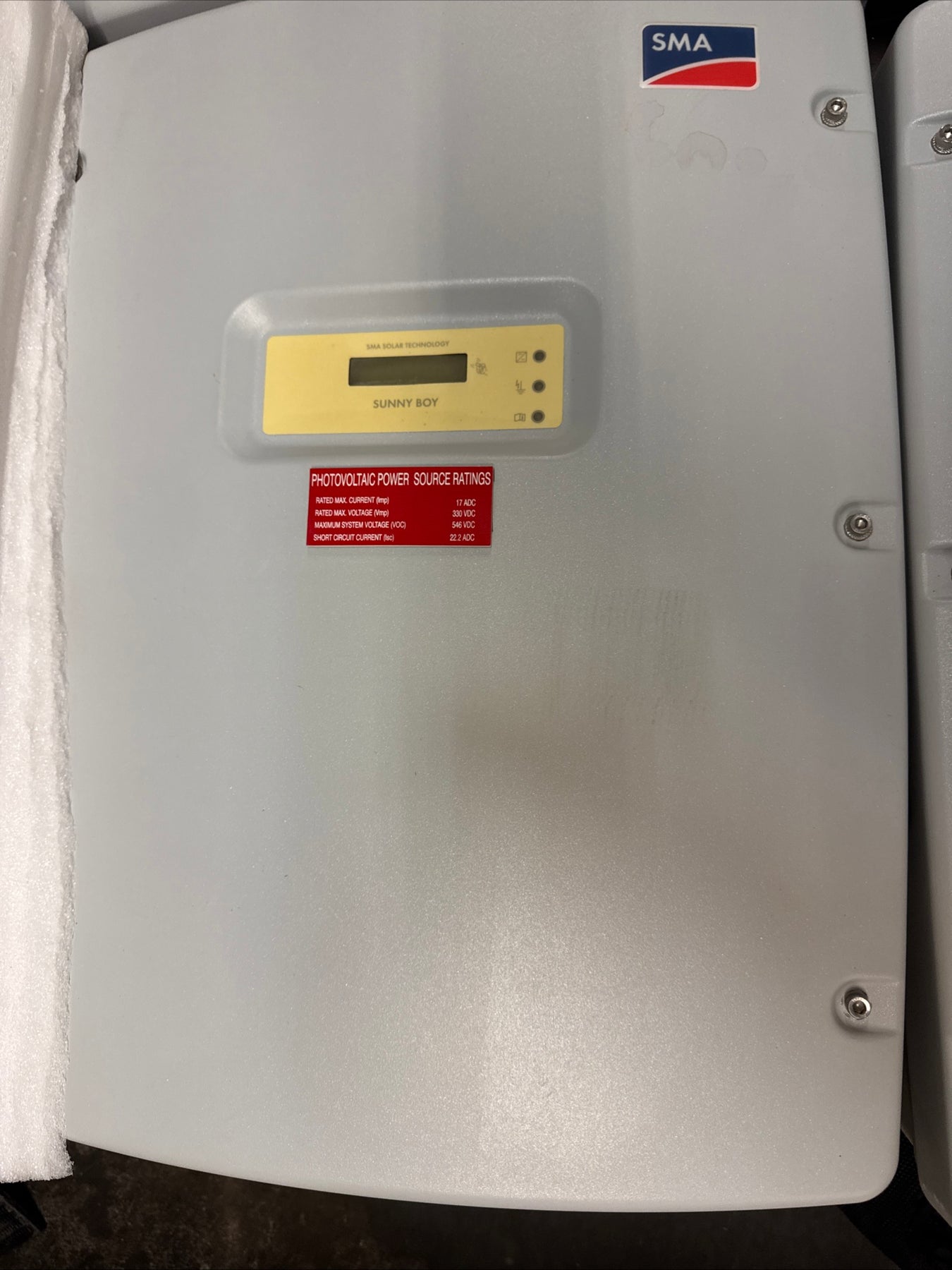

The Sunny Boy SB6000US single-phase hybrid inverter is the two-in-one solution to add solar power to your home or DC Solar trailer.

Problem: The MidNite Classic 250 on your DC Solar trailer is limited to 3200 watts of PV, often less due to non-working fans. It also runs in open loop and cannot communicate with the rest of the system.

Solution: The Sunny Boy inverter gives you more than double the amount of PV capability (up to 7500 watt array size) and interacts with the Sunny Island inverters to maximize safety and efficiency of the system. Unlike the MidNite Classic, the Sunny Island inverters can control the Sunny Boy to limit PV output for times when the battery is nearly full. This works especially well with our LiFePO4 energy storage systems, which feature the ability to communicate with the Sunny Island inverters.

Configuration

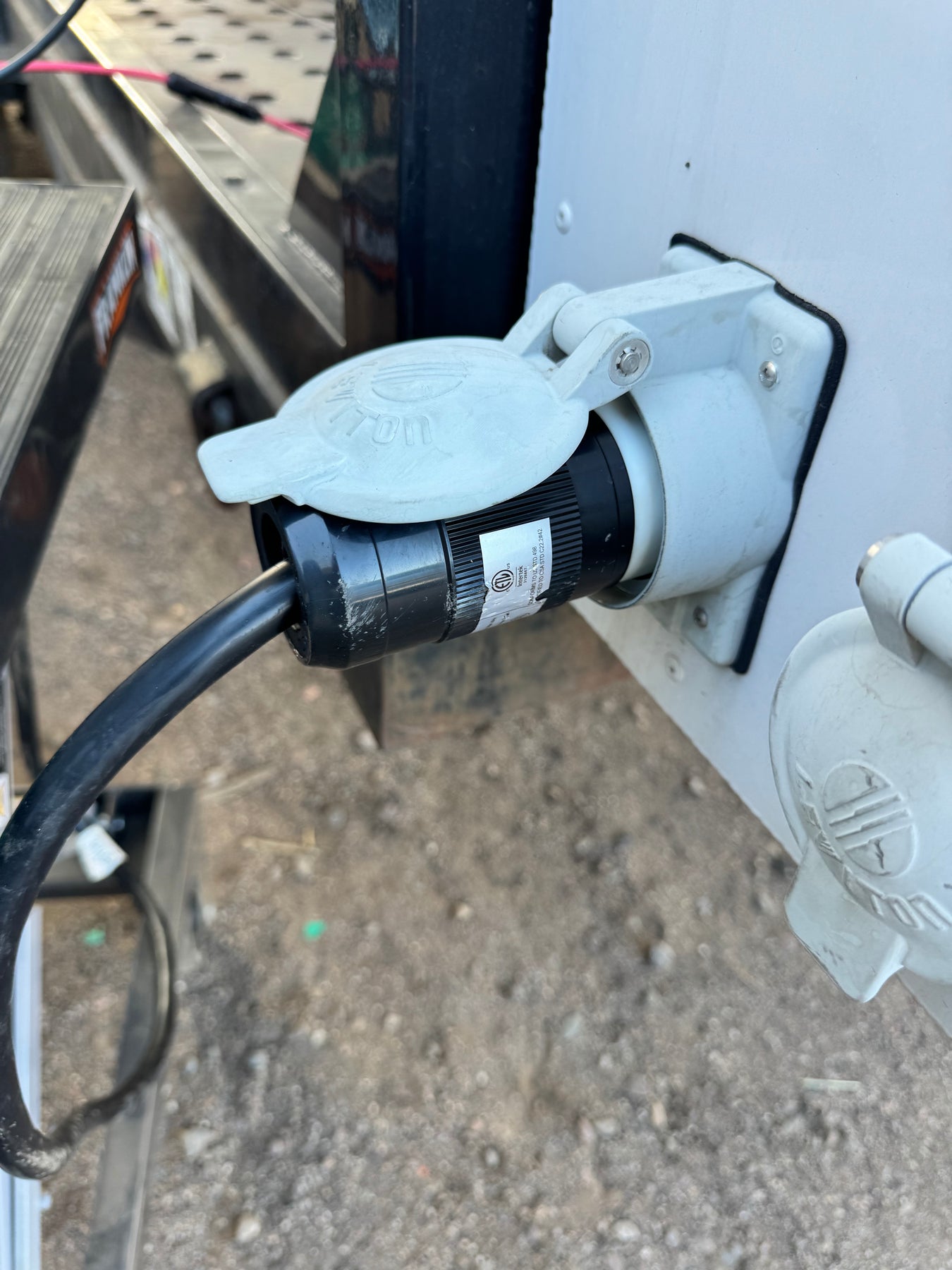

We've configured this Sunny Boy to work with the existing Sunny Island system found in your DC Solar trailer. That includes  Simply plug the included wiring into one of the two 240v outlets on the side of the enclosure, connect a PV array to the included MC4 connectors, and you're good to go!

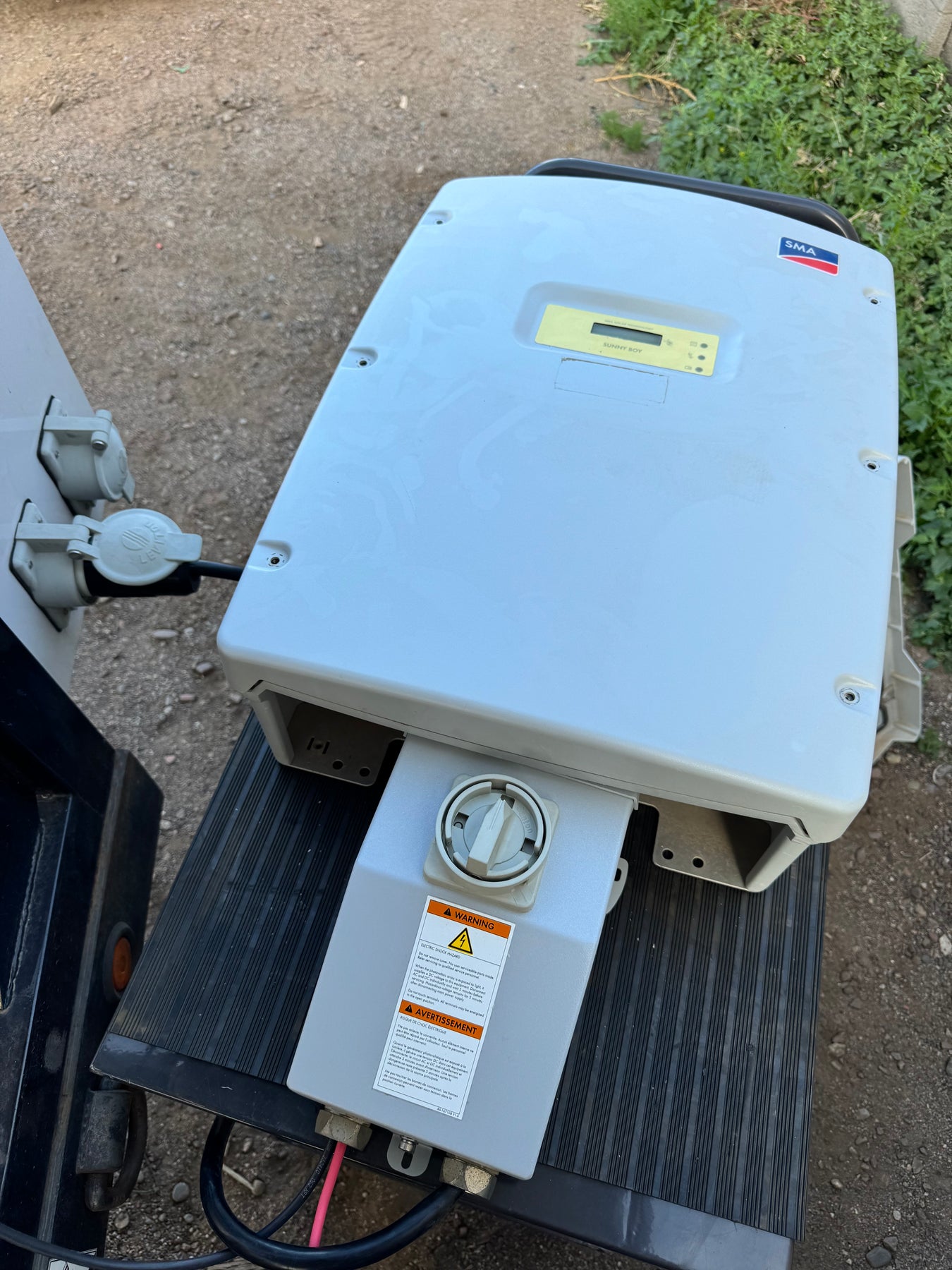

This system comes with a DC Disconnect switch for added protection. The inverter has one solar input (MPPT), which we pre-wire with MC4 connectors for a simple plug and play connection. We can add up to two additional (3 total) MC4 pairs; contact us to request. Note that any arrays connected to the Sunny Boy will need to be the same PV panels in the same parallel/series configuration and will require separate fusing for each array.

This Sunny Boy is used and will exhibit signs of wear, but we test each one before it leaves our shop.

If using the existing PV array on the trailer: The existing PV panels will need to be wired in series to achieve enough voltage for the Sunny Boy. We can

Optional Add-Ons

Contact us if you want to add any of these options at additional cost.

• Longer AC cable
• Longer PV input cables
• Additional PV input cables
• Inline PV fuses
• Pre-terminated PV cables

Shipping

Shipping is not included in the price. The system will be shipped on a pallet via freight due to the size and weight of the inverter.

Sunny Boy Specifications

Mechanical

Input (DC)

Output (AC)

Features

High Yields

• Maximum efficiency 97.3%
• The best tracking efficiency with OptiTrac MPP tracking
• OptiCool active temperature management

Safe

• Galvanic isolation
• Integrated DC switch-disconnect

User-friendly

• Slim enclosure mounts in between wall studs
• Plug-in grounding with GFDI
• Reduced weight
• Quick and easy configuration thanks to Quick Module

Informative

• Modern LCD display

Unmatched Applications Flexibility

• Full-rated power available up to 50°C ambient temperature.
• Dual input sections with parallel option, with independent high-speed MPPTs, optimize energy harvesting from multiple arrays oriented in different directions.
• Wide MPPT operating range: 250to 480Vdc

Field-Proven Reliability

• IP65 (NEMA 4) rated enclosure withstands the harshest environmental conditions.
• Front-mounted heat sink resists contamination, enhancing cooling and increasing reliability and long-term efficiency.
• Grid-connected operation according to international standards, UL1741/IEEE1547 & CSA-C22.2 N.107.1-01


Detailed Description

The Sunny Boys have been repeatedly acclaimed - and are constantly developing. Our new Generation come with innovative technologies such as OptiTrac and H5-Topology. These make the device even more efficient - and therefore ensuring a very good solar yield.

Sunny Boy 6000-US: Versatile performer with UL certification

The Sunny Boy 6000-US inverters are UL certified and feature excellent efficiency. Graduated power classes provide flexibility in system design. Automatic grid voltage detection* and an integrated DC disconnect switch simplify installation, ensuring safety as well as saving time. These models feature galvanic isolation and can be used with all types of modules-crystalline as well as thin-film.
